Pre order for March 2025 delivery. This foil will change the industry.
The brand new KT line of foils has the biggest innovation in 8 years of foil design that lowers the stall speed of the foil by 2-3 mph, while keeping top speed over 30mph This is huge increase.
Unmatched efficiency, glide, acceleration and maneuverability for experienced riders. The Atlas series is crafted for intermediate to advanced riders seeking exceptional glide, acceleration, and a broad speed range without compromising turning ability.
Designed to optimize lift over a reduced surface area, the Atlas features a unique rear-loaded camber profile and low sweep, allowing it to operate efficiently even at surprisingly low speeds. Tuned for early lift, effortless pumping, speed generation, and high resistance to stalling or “dropping out,” it delivers consistent performance across a wide range of conditions. Inflected wingtips make breaching turns and ventilation virtually unnoticeable, making the Atlas ideal for any progressing wing, surf, or downwind foiler. Despite its high aspect shape, the Atlas offers responsive maneuverability, carving, and glide, giving riders the freedom to master advanced maneuvers, tacks, and enjoy a smooth ride at any speed.
Highlights
- Glide-Oriented Geometry: Low sweep with center of lift aligned for maximum efficiency at design speeds.
- Advanced High Camber Airfoil: Optimized for maximum efficiency across a wide speed range, with a rear-loaded design that reduces surface area and boosts low-speed performance while maintaining stability and control.
- Wide Range Efficiency: Maintains performance from low to high speeds. Precision and Control: Offers reactive control for tight turns and deep carves.
- Inflected Wingtips: Maximizes control through surface-piercing breaches with high resistance to ventilation.
- High-Speed Performance: Exceptional acceleration and controlled top speeds.
- Progression-Driven Design: Crafted to support and elevate rider progression.
- Optimized for Surf and Downwind: Tailored for surf, wing, kite, or SUP foilers seeking ultimate freedom and performance.
Details

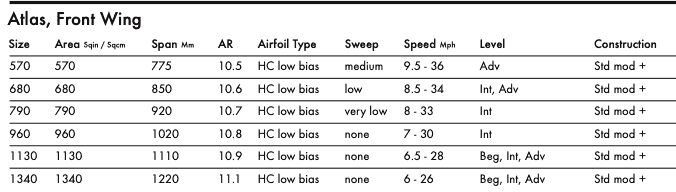

Due to the Atlas’ unique high camber profile, early lift, and stall resistance, we recommend sizing down 10-20% compared to other foils on the market. Available Sizes and
Speed Ranges:
- 570 cm²: 9.5 - 36 mph
- 680 cm²: 8.5 - 34 mph
- 790 cm²: 8 - 33 mph
- 960 cm²: 7 - 30 mph
- 1130 cm²: 6.5 - 28 mph
- 1340 cm²: 6 - 26 mph
Finish: Available in satin Carbon Finish and timeless logos.
Hardware: High-quality M8 and M6 316 Stainless Steel Torx hardware available separately as box sets or individual spare pieces.
